UNIFIT DOOR

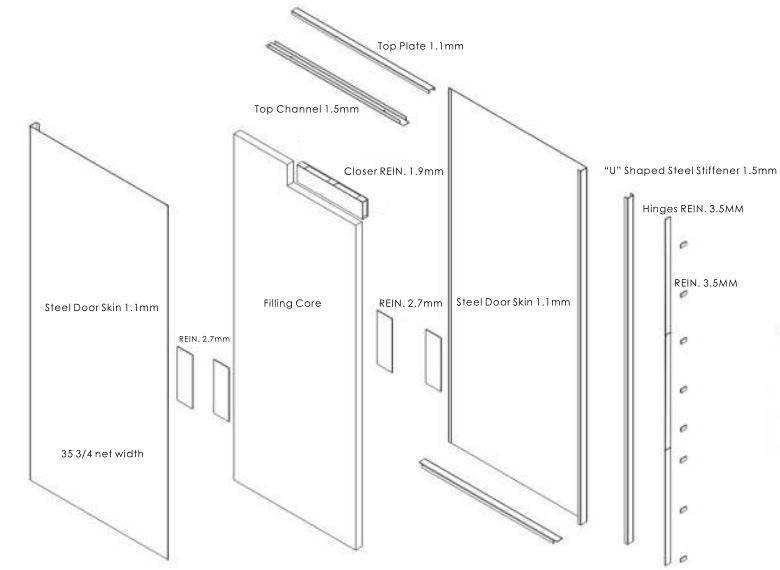

18GA (1.1mm)

Galvanized steel skins

Construction is 1-3/4’’ (45mm) Thickness

Whole channel hinge reinforcement, closer reinforcement shall be provided

Hinge reinforcement: 10GA (3.5mm)

Closer reinforcement: 12GA (2.5mm)

The top, bottom and side closures are fabricated

From 16 GA (1.5mm) thick channel shaped steel sections

Welded to the front and back door skins

Flush top channel: 16GA (1.5mm)

Laser-welded side-seamed edge

Avaliable with polystyrene core
