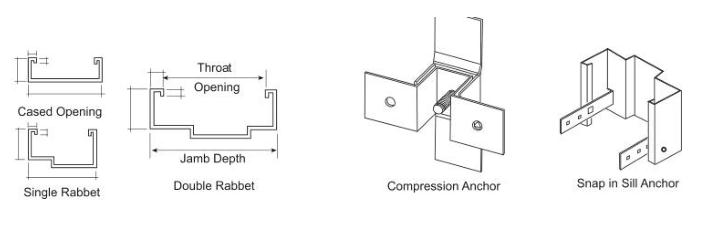

Drywall Frame:

Jamb Depth	4-3/4’’	5-7/8’’	6-1/4’’	6-5/8’’	7-1/4’’	7-3/4’’	8-1/4’’
Throat Opening	3-3/4’’	4-7/8’’	5-1/4’’	5-5/8’’	6-1/4’’	6-3/4’’	7-1/4’’

Tech Data:

Thickness: Made for basic door thickness: 1-3/4’’(45mm)

Gauges: 16g Gauge (1.5mm)

Size availability: Maximum size single-4 feet*8 feet, Maximum size double-8 feet*8 feet

Fire label range: Maximum fire rating 90 minutes with compression anchors

Anchors:Welded in compression anchors with loose sill anchors

Reinforcement: closer rein, hinge rein, lock rein shall be provided, tải game android

Silencer perp: 9/32 inch diameter holes shall be provided as standard on strike jamb and double headers (3 per strike jamb and 2 per double head)
